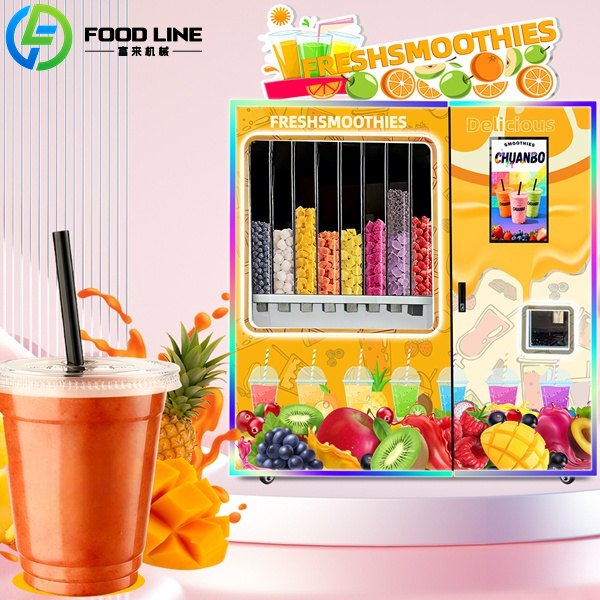

A smoothie vending machine is an automated device designed to make and dispense smoothies using ingredients such as fresh fruit, juice, yogurt, milk, powder, and ice. A typical machine includes an ingredient storage system, a refrigeration and preservation system, an ice storage system, an automatic blending unit, a cup dispensing system, a touchscreen ordering interface, and an intelligent control system. Contact us for a quote! WhatsApp/Phone: +86 13838385752.
Fruit Smoothie Vending Machine Parameters
Model
FL – SVM01
Voltage
220V, 50Hz
Max Power
2500W
Display
32″
Weight
200 kg
Dimensions
1800*870*2000 mm
Freezer Temperature
-17°C
Mixer
Swivel joint with brake
Cup Capacity
200
Water Tank
32 L
Drink Size
120Z (340 ml)
Start Earning! WhatsApp/Phone: +86 13838385752.
different colored smoothie vending machines
How Does a Smoothie Vending Machine Work
Step 1: Customer Selects Flavor
The customer browses the beverage menu on the screen. The machine displays different smoothie flavors, ingredient details, and promotional images. After selecting a beverage, the customer chooses a payment method.
Step 2: Automatic Ingredient Dispensing
After payment, the system automatically dispenses the required ingredients. Ingredients include: fresh fruit, yogurt, milk, juice, protein powder, and ice. The automatic dispensing system ensures accurate ingredient ratios for each drink.
Step 3: Blending
The blender automatically starts after the ingredients enter the blending chamber.
Step 4: Cup Dispensing and Packaging
The machine automatically dispenses cups. The machine sends the finished smoothie to the pickup area, where the customer can collect it.
Temperature Control System: The freezing zone contains 10 fruit hoppers, each with a capacity of 12L. This area is equipped with UV disinfection.
Water System: The machine can hold two 16L water containers. A wastewater pipe is installed, and a wastewater tank is placed inside the machine. After processing, the machine automatically cleans itself and discharges wastewater into the tank through the pipe. The wastewater drain pipe sits on top of the wastewater tank.
Automatic System: The machine automatically stirs, cleans, and dispenses cups. The stirring speed is adjusted according to the firmness of the fruit.
Powder Dispensing Zone: This area includes 4 automatic powder dispensers, each with a capacity of 2 liters. The system allows you to add different types of materials.
Refrigeration Zone: This area includes 4 liquid container tanks, each with a capacity of 2 liters. These tanks hold 4 different liquid ingredients, such as honey, jam, milk, and syrup.
Application Scenarios for Fresh Smoothie Vending Machines
Shopping malls
Gyms and fitness centers
Schools
Airports and transportation hubs
Hotels
FAQ
Can the equipment be used outdoors?
This equipment is not suitable for outdoor use. Please place it in a dry environment. The operating ambient temperature is 1℃~32℃.
What payment methods does the device support?
Payment templates include coins, cash, and card readers. Customization is available for your location.
What are the installation requirements for a smoothie vending machine?
Please leave a minimum of 1.8 to 2.5 meters of operating space in front of the equipment. The back should be 0.2 to 0.5 meters from the wall to ensure the cooling fan operates properly. Sufficient clearance should also be provided at the top and sides for easy maintenance, disassembly, and equipment inspection.
Foodline provides intelligent vending machines to customers worldwide. Our products include beverage vending machines, pizza vending machines, and juice vending machines. We offer machine customization, production, testing, and after-sales service. Equipment can be customized to match your needs. Please inquire for a quote! WhatsApp/Phone: +86 13838385752.
