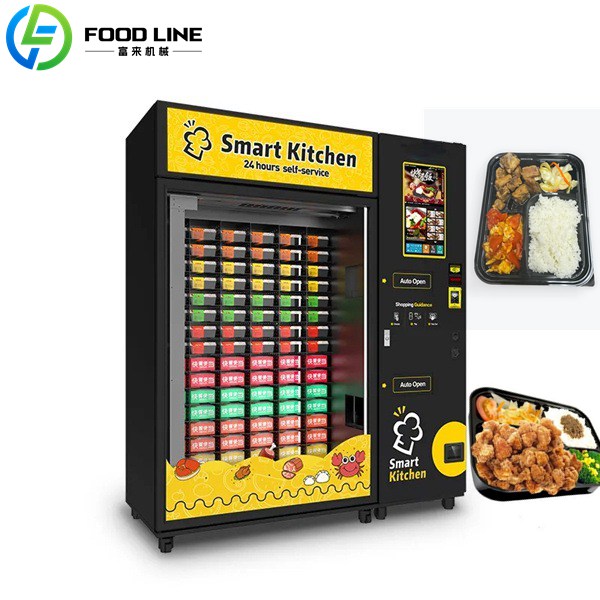

Bento Vending Machine for Hot & Frozen Lunch Boxes

vending device for bento
vending device for bento
smart vending device for lunch box
smart vending device for lunch box

Bento vending machine features intelligent refrigeration, deep-freeze preservation, automatic heating, and automated meal retrieval capabilities. Consumers can select their favorite meals at any time and enjoy a delicious meal within just a few minutes. For operators, this means they can sell bento products without needing to rely on a physical storefront. Get Factory Prices! WhatsApp/Phone: +86 13838385752.

Parameters of Lunch Box Vending Machine

ModelFL-CB012FL-CB020A
Peak Power4800W9600W
Voltage220V 50Hz (Leakage Protection)
(Optional: 110V/220V 50-60Hz)
220V 50Hz (Leakage Protection)
(Optional: 110V/220V 50-60Hz)
Weight400kg560kg
Dimensions (W x H x D)W1755 × H1980 × D1320 mmW1750 × H1986 × D1288 mm
MaterialRefrigerator-grade rigid PU foam cabinet; Galvanized thickened sheet metalRefrigerator-grade rigid PU foam cabinet; Galvanized thickened sheet metal
Temperature RangeStandard: 3-8°C (Refrigerated)
Optional: -18-0°C (Frozen)
Standard: -20-0°C (Frozen)
Capacity7 layers, 4 slots per layer
Total: 112-224 items
8 layers, 4 slots per layer
Total: 96-128 items
customized boxed meal vending machine
customized boxed meal vending machine

What Products Can the Bento Vending Machine Sell?

vending machine for lunch box
  • Bento meals
  • Rice boxes
  • Prepared dishes
  • Cooked foods
  • Sushi and Japanese snacks
  • Cakes and desserts
  • Bakery products
  • Frozen meals
  • Specialty regional foods

Smart Bento Box Vending Machine Placement Locations

  • Office buildings
  • Hospitals
  • Universities
  • Airports
  • Railway stations
  • Shopping malls
  • Hotels
  • Industrial parks
  • Residential communities
  • Convenience retail zones
white lunch box vending device

Features of Automatic Lunch Box Vending Machine

Touchscreen System

This device features a 21.5-inch touchscreen display powered by a high-performance Android motherboard. The screen supports the display of product images, menu information, advertisements, and promotional content. Operators can implement engaging user interfaces to enhance customer engagement and boost conversion rates.

Refrigerated and Frozen Storage Capabilities

Food freshness is directly linked to customer satisfaction. This bento vending machine offers two distinct storage configurations: refrigerated and frozen. Refrigerated storage operates between 3°C and 8°C; standard frozen storage ranges from -18°C to 0°C; and a deep-freeze configuration is available ranging from -20°C to 0°C. The cooling system utilizes advanced compressor technology to maintain a constant, stable internal temperature. The cabinet structure features refrigerator-grade foam insulation and thickened galvanized steel plating to minimize thermal loss.

Automated Microwave Heating System

The bento vending machine is equipped with an integrated microwave oven. An optional dual-heating configuration is also available, allowing for the simultaneous heating of two meal portions.

XY-Axis Retrieval and Conveyor Technology

The XY-axis linkage technology ensures that fragile food items remain structurally intact during retrieval. This mechanism prevents damage to product packaging, thereby enhancing overall customer satisfaction.

FAQ

Does the bento vending machine feature safety safeguards?

The pickup area features an intelligent sensor system and a safety door design to prevent finger-pinching accidents. The unit is also equipped with an anti-theft door system to ensure the security of the machine and its contents. The front panel of the machine features triple-coated, explosion-proof tempered glass, complemented by an electric heating system to prevent fogging.

How many boxed meals can the machine hold?

The two models feature different configurations: the FL-CB020A can accommodate 96 to 128 items, while the FL-CB012 can accommodate 112 to 224 items.

Foodline – Professional Vending Machine Manufacturer

For operators seeking intelligent solutions, our vending machine is designed to meet your needs and deliver long-term business value. Our product range includes automated pizza vending machines, fruit and vegetable vending machines, juice vending machines, and more. We invite you to contact us for inquiries, and we offer 24-hour response service! WhatsApp/Phone: +86 13838385752.
